MIL-D-435F(ME)
Optional Concave
Configuration
6.7 min
10 max
7 min
9 min
10 max.
15.5 max.
CHOCK MATERIAL NOTE
CAPTIVE FASTENER ASSEMBLY DETAILS
1. ALUMINIUM
1. SNAP HOOK FOR CRADLE OR EYE.
2. MAGNESIUM
2. FASTENER LINE TENSILE STRENGTH
3. SEMI-RIGID ELASTOMER
MINIMUM OF 1,400 LB.
4. MAXIMUM CHOCK WEIGHT-
3. PLATE FERROUS COMPONENTS TO RESIST
11.5 LB
CORROSION.
4. LENGTH OF CAPTIVE FASTENER ASSEMBLY
SHALL REACH BETWEEN CRADLE OR
HANGER AND EMPLACED CHOCK BLOCK AT
EXTREME LOCATIONS AHEAD OF AND
BEHIND ROAD WHEELS.

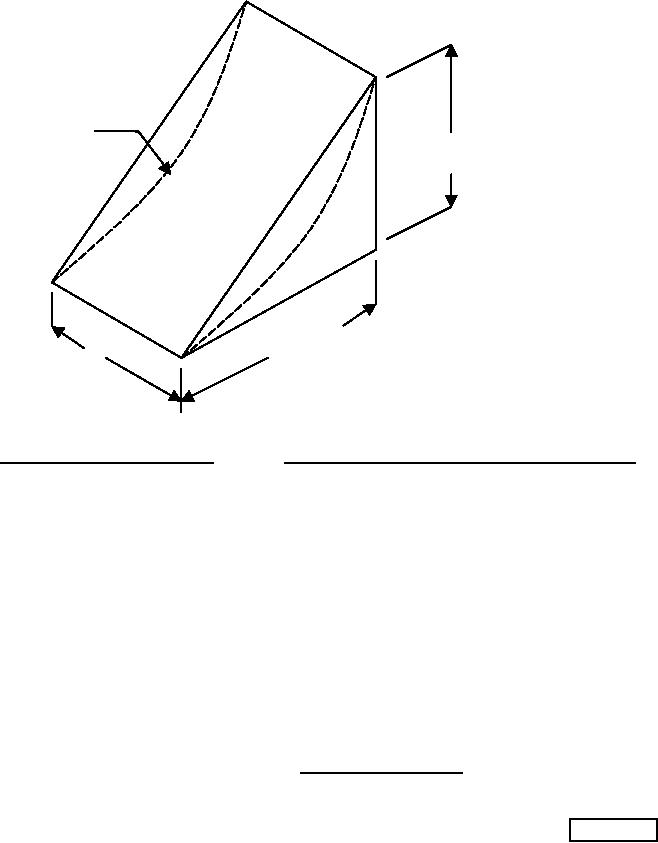

FIGURE 1. Chock block assembly.
